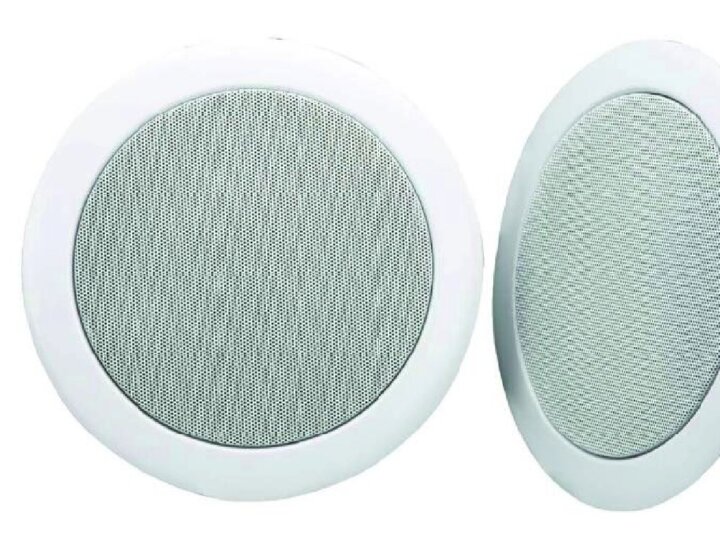

Product Number: VCS500
VCS series of Velox by ATEIS Ceiling speakers has excellent aesthetic look with a clean and neat metal grill. The unit comes with 100V /70V LMT (Line Matching Transformer) with 3 tapings i.e. 6W, 3W & 1.5W.
Unit is equipped with 4 pin screw terminal for tapping & common wires. VCS is shipped with Individual box packing for safe transportation.
The unit comes with Snow white colour which suitsits application on any surface. The VCS is equipped with two quick release springs
Read More Order Inquiry
Description
VCS series of Velox by ATEIS Ceiling speakers has excellent aesthetic look with a clean and neat metal grill. The unit comes with 100V /70V LMT (Line Matching Transformer) with 3 tapings i.e. 6W, 3W & 1.5W.
Unit is equipped with 4 pin screw terminal for tapping & common wires. VCS is shipped with Individual box packing for safe transportation.
The unit comes with Snow white colour which suits its application on any surface. The VCS is equipped with two quick release springs type clamps for easy mounting in False ceiling.
Elegant Metal Grill
Quick release spring type clamps
Excellent Frequency response
Suitable for PAVA & BGM Applications
Multiple tapping of 6W,3W & 1.5W
Its takes only 5 seconds for Velox VCS500 to terminate & mount in False ceiling a single speaker, that makes this favourite choice of Installation engineers/technicians.
Technical Specs
Technical Data (Electrical)
| Feature | Description |
| Power | 6 W |
| Tappings 100V Line , Watts | 6 / 3/ 1.5 |
| Transformer Impedance, Ohms, 100V: | 1.67k/3.33k/ 6.66k |
| Tappings 70.7 volt line, Watts: | 3 / 1.5 / 0.75 |
| Driver impedance, Ohms: | 8 |
| Effective frequency range, Hz : | 110Hz – 17.5kHz |
| S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: | 92 |
| S.P.L. @ Full power Octave Bandwidth, dB: | 97 |
| Dispersion at 1kHz/2kHz, Degrees: | 180 |
| Directivity Axial Q factor, 1kHz: | 2.3 |
Downloads
| VCS500 Ceiling Speaker | (494.03 KB) |
|
